For hot weather places where has no grid power, or seeking green power for emergency tank showers, our Safety Shower
with Solar Chiller, without the need for power from other sources,
is a perfect solution.

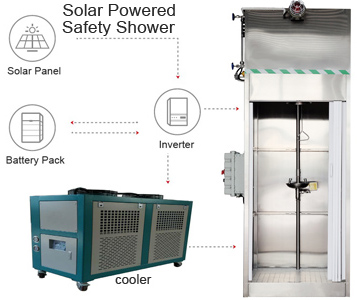

The system mainly includes: Safety shower & tank, Chiller,
Battery pack, Inverter and PV panels. The Chiller and power supply package have explosion proof version and regular version available for your selection. The PV panels can be located besides the safety shower, or above the safety shower as a shelter, blocking the sunshine and rain.

• Standalone package, no outside power or electricity required
• Energy saving and environmentally friendly
• The Solar power package can be used for your existing
traditional safety showers.

Key Data

Safety Shower Room
Main Materials:                                  Frame&Legs&valves: Stainless Steel 304, Tank: SS/MDPE&FRP
Tank Capacity:                                  1500L
Operation Pressure:                           1-6 bar
Minimum Flow Rates:                         Shower: 76L/m, Eye Wash: 12L/m
Water Inlet/outlet Temperature:          0-60Degree C/16-38 Degree C
Operation Methods: Shower:               Pull Rod/Eye Wash: Hand push / Foot Pedal
Ambient Temperature:                        0 Degree C to 40 Degree C, and 55 Degree C with Chiller
Options Available:                              Voice alarm and light alarm, Temporary waste water collection pallet, Scaled valve, Etc.

Chiller
Cooling Capacity:                               Customized
Power Supply:                                   220/50Hz
Rated Power(total):                            Customized
Refrigerant:                                       R407C/R134A
Ex. Proof Class:                                  ExdibmbIIBT4Gb

Solar Power Supply Package
Battery Capacity:                                Customized
Battery Type:                                      Lithium
Battery Working Temperature:              -20 to 60 Degree C
Battery allowed Current:                      150A
Inverter Module Capacity:                    15kW
Inverter Module Power Output:             220V/50Hz
Inverter Module Working Temperature:  -20 to 55 Degree C
Solar Panels:                                       Around 12m2 in total.
Ex. Proof Class:                                   Battery & Inverter Module in a package Ex. Proof, ExdibmbIIBT4Gb –

Installation and Commission
Installation:                                         Following installation instruction of manufacture r
Commission Time:                               For initial installation, need  2 days for the battery to be fully charged  and cool down

                                                            initial water
Weight&Dimension(L*W*H):                 1150*1500*4350cm

Easco Safety reserves the right to change the specification without notice.
